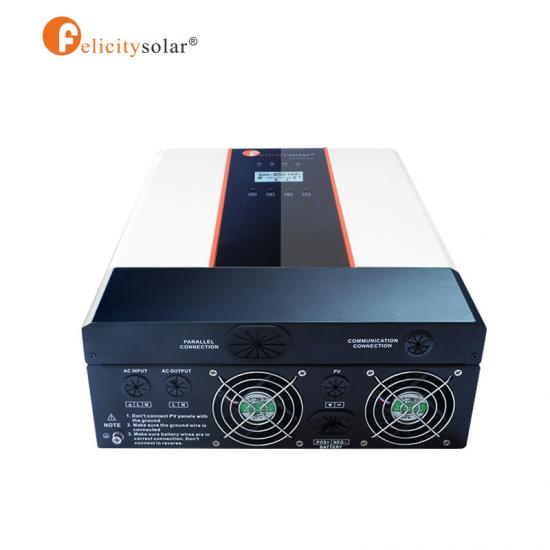

FELICITY SOLAR INVERTER 5000
Felicitysolar brand new model Hybrid inverter for solar home system supply. Power: 5000va(5kva/5kw) with MPPT 100A controller inbuilt. Transit voltage from DC 48V to AC 220V.
Automatically transfer between battery and line mode
2. High reliability Microprocessor control
3. Remote control and BTS terminal
4. Intelligent charging control
5. Bypass with AVR function (optional)
6. Maximum charging current to 85A (depend on capacity and battery voltage )
7. SNMP card and RS232 communication (optional)
8. Input voltage range and battery voltage protect can setting through DIP switch
9. Battery type and charge current can be adjusted
10. Charge and output priority setting through front button
Data Sheet
Model | IVEM5048 | |||||||||
Rated power | 5KVA/5000W | |||||||||
Input | ||||||||||
Voltage | 230V | |||||||||
Selectable Voltage Range | 170-280 VAC ( ) 90-280 VAC ( Appliances ) | |||||||||
Frequency Range | 50 Hz/60 Hz (Auto sensing) | |||||||||
Battery Voltage | 48VDC | |||||||||
Output | ||||||||||
AC Voltage Regulation | 230VAC ± 5% | |||||||||
Efficiency(Peak) | >95% ( Rated R load, battery full charged ) | |||||||||
Transfer time | 10ms typical (UPS); 20ms typical (Appliances) | |||||||||
Waveform | Pure sine wave | |||||||||
SOLAR CHARGER&AC CHARGER | ||||||||||
Maximum Solar Charge Current | 100A | |||||||||
Maximum AC Charge Current | 100A | |||||||||
Maximum Charge Current | 100A | |||||||||
Rated Power | 6000W | |||||||||
Max. PV Circuit Voltage | 500Vdc max | |||||||||
PV MPPT Volt Range | 120~500Vdc | |||||||||
Min. Battery Volt for PV Charge | 48Vdc | |||||||||
OPERATING ENVIRONMENT | ||||||||||
Storage Temperature | 0°C - 55°C | |||||||||
Humidity | -15°C - 60°C | |||||||||
PHYSICAL | ||||||||||
Dimension | 415 x 320 x 129 | |||||||||
Net Weight | 13.2KG |
